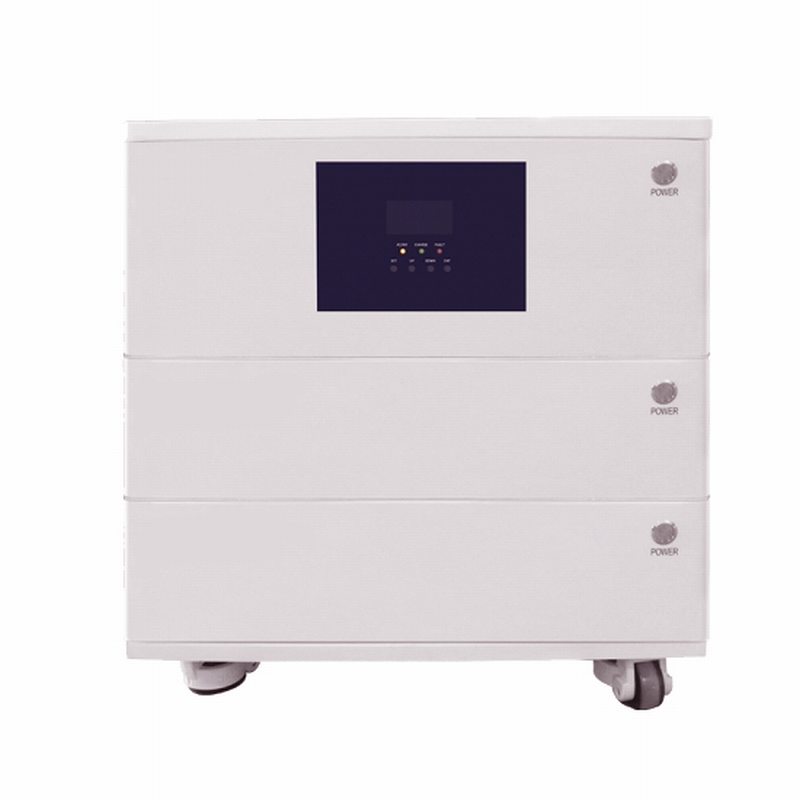

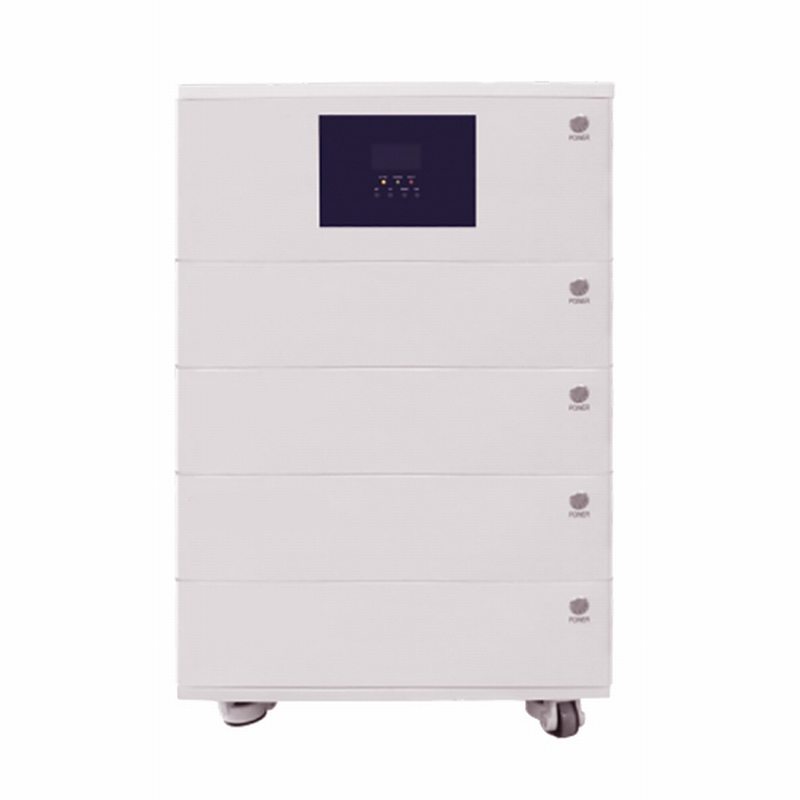

Energy storage system for home with lithium ion battery 5kWh/10kWh/15kWh/20kWh. The all in one energy storage system includes inverter, controller and batteries.
Features:
▪ 5KW Off-Grid Energy Storage System
▪ Battery + Inverter + Controller
▪ Hybrid Solar Inverter 5KW Off-Grid + MPPT controller
▪ Battery Modules 51.2V100AH – LiFePO4
▪ Floor & Wall-Mounting
▪ Multiple Parallel Configuration, Capacity Range 5KWH to 20KWH
▪ Advance BMS Control
▪ Long Cycle Life 6000 Cycles
▪ Calendar Life 10+ years
Specification:
| Inverter+Controller Parameter | |
| Battery Input | |
| Rated Battery Input Voltage | 51.2V |
| Hybrid Charging Maximum Charging Current | 80A |
| Battery Voltage Range | 44.8-57.6V |
| Solar Input | |
| Maximum PV Open-cir cuit Voltage | 500vdc |
| PV Working Voltage Range | 120-500Vdc |
| MPPT Voltage Range | 120-450Vdc |
| Maximum PV Input Current | 18A |
| Maximum PV Input Power | 5200W |
| Maximum PV Charging Current | 80A |
| AC Input（generator/grid） | |
| Mains Maximum Charging Current | 40A |
| Rated Input Voltage | 110/120Vac |
| Input Voltage Range | (90Vac~140Vac) ± 2% |
| Frequency | 50Hz/60Hz (Automatic Detection) |
| Mains Charging Efficiency | >95% |
| Switch Time (bypass and inverter) | 10ms(Typical Value) |
| Maximum Bypass Overload Current | 63A |
| AC Output | |
| Output Voltage Waveform | Pure Sine Wave |
| Rated Output Voltage (Vac) | 120Vac(100/105/110Vac Settable) |
| Rated Output Power (VA) | 5000(4100/4300/4500） |
| Rated Output Power(W) | 5000(4100/4300/4500） |
| Peak Power | 10000VA |
| On-load Motor Capacity | 4HP |
| Output Frequency Range(Hz) | 50Hz ± 0.3Hz/60Hz ± 0.3Hz |
| Maximum Efficiency | >90% |
| No-load Loss | Non Energy-saving Mode: ≤50W Energy-saving Mode ：≤25W(Manual Setup) |
| General | |
| Certificate | CE(IEC62109-1)/CETL(UL1741 CSA C22.2 NO .107.1) |
| Rated Output Voltage (Vac) | EN61000 |
| Working Temperature Range | -15°C~ 55°C |
| Storage Temperature Range | -25°C~ 60°C |
| Humidity Range | 5% to 95%(Conformal Coating Protection) |
| Dimensions | 560*480*200mm |
| Weight (KG) | 22kg |
| Module Parameter | |
| Battery Type | LFP |
| Battery Rated Voltage | 51.2V |
| Battery Working Voltage Range | 44.8～ 57.6V |
| Maximum Charging Current | 100A |
| Maximum Discharging Current | 100A |
| DOD | 6000cycles@80%DOD |
| Parallel Quantity | 4 |
| Dimension W × L× H | 560x480x150mm |
| Weight | 49 kg |
| Base Parameter | |
| Material | Steel |
| Dimension L× D× H | 560x480x70mm |
| Weight | 7 kg |
| BATTERY | BT-5K | BT-10K | BT-15K | BT-20K |
| Battery Module | 1 | 2 | 3 | 4 |
| Battery Energy | 5.12kWh | 10.24kWh | 15.36kWh | 20.48kWh |
| Battery Capacity | 100AH | 200AH | 300AH | 400AH |
| Weight | 78kg | 127kg | 176kg | 225kg |
| Dimension L× D× H | 560x480x420mm | 560x480x570mm | 560x480x720mm | 560x480x870mm |
| PV CHARGE | ||||
| Solar Charge Type | MPPT | |||
| Maximum Output Power | 5KW | |||
| PV Charging Current Range | 0～80A | |||
| PV Operating Voltage Range | 120～500V | |||
| MPPT Voltage Range | 120～450V | |||
| AC CHARGE | ||||
| Maximum Charge Power | 3150W | |||
| AC Charging Current Range | 0～40A | |||
| Rated Input Voltage | 110/120Vac | |||
| Input Voltage Range | 90～140Vac | |||
| AC OUTPUT/ INVERTER | ||||
| Rated Output Power | 5KW | |||
| Maximum Output Current | 42A | |||
| Frequency | 50Hz | |||
| Overload Current | 45A | |||
| Maximum Peak Power | 10KVA | |||
| Maximum Efficiency | >90% | |||
| Rated Output Voltage (Vac) | 120Vac | |||
| Auto Switch Period | ＜10ms | |||
| THD | ＜3% | |||
| GENERAL DATA | ||||
| Communication | RS485/CAN/WIFI(optional) | |||
| Storage Time / Temperature | 6 months @25℃;3 months @35℃;1 months @45℃; | |||
| Charging Temperature Range | 0～45℃ | |||
| Discharging Temperature Range | -10～45℃ | |||
| Operation Humidity | 5% ～ 85% | |||
| Nominal Operation Altitude | ＜2000m | |||
| Cooling Mode | Electric Fan | |||
| Noise | 60dB(A) | |||
| Ingress Protection Rating | IP20 | |||
| Recommended Operation Environment | Indoor | |||
| Installation Method | Horizontal | |||
| Certification | UL1741, UL1973, UN38.3, MSDS | |||
