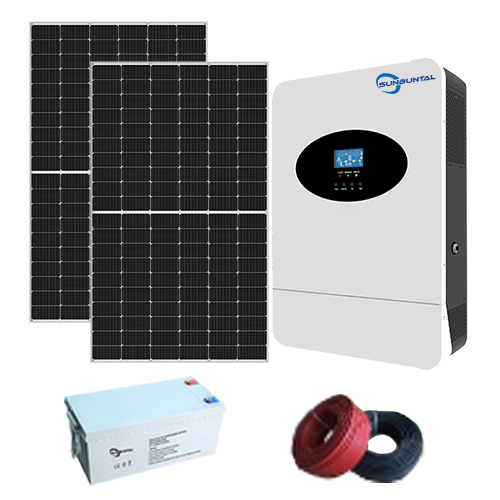

Sunbuntal supply the high qulity 5KW all in one Off-Grid Solar Power System for Home ,It have two types of independent operation and grid-connected operation.it can provide the steady supply of electricity to solve the power shortage challenge in the energy-poverty areas ,we can supply on-time delivery and quick response after-sales service are our fundamental concerns
| No. | Item | Specification | Qty | Remarks |

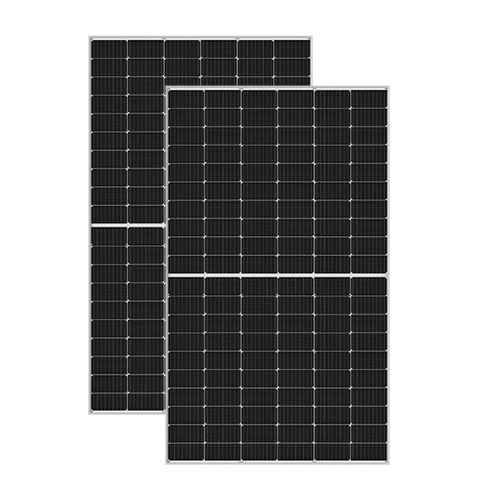

| 1 | Solar panel | Mono 260W 30V | 9Pcs | connection method：3 strings x3 parallels |

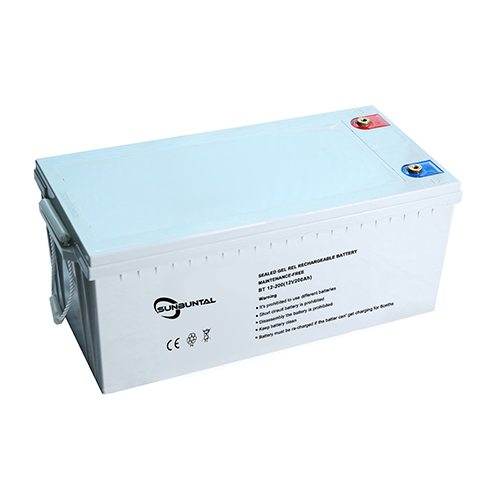

| 2 | Solar Battery | Gel 12V 200AH | 4Pcs | 4pcs in series |

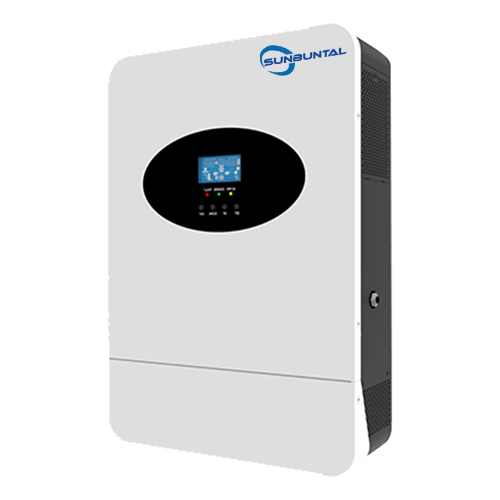

| 3 | Inverter | 3KW | 1Set | 1、AC Input & AC Output Voltage: 220VAC. |
| 2、Support grid/Diesel Input. | ||||
| 3、Pure sine wave. | ||||
| 4、LCD display, Intelligent Fan. | ||||
| 5、Max PV Input Voltage: 150V. | ||||
| 6、Max PV Input Power: 3.2KW. | ||||
| 4 | PV Combiner Box | BR 4-1 | 1Pc | 4 inputs, 1output |
| 5 | Connector | MC4 | 3Pairs | More 6 Pairs As Fittings |
| 6 | Panel Bracket | 1 | ||
| 7 | PV Cables | 4mm² | 200M | Solar Panel to PV Combiner Box |
