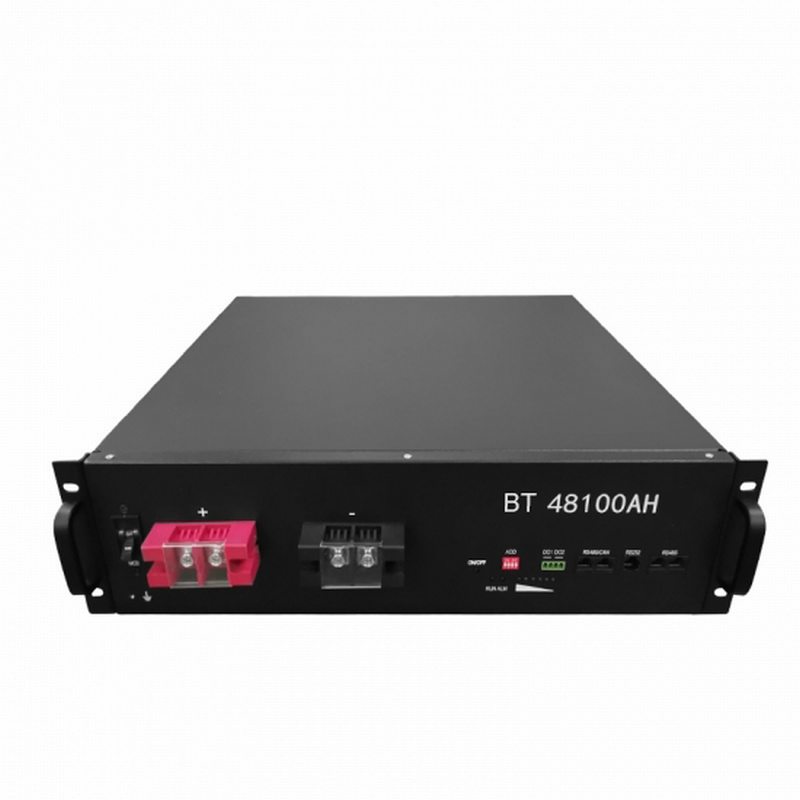

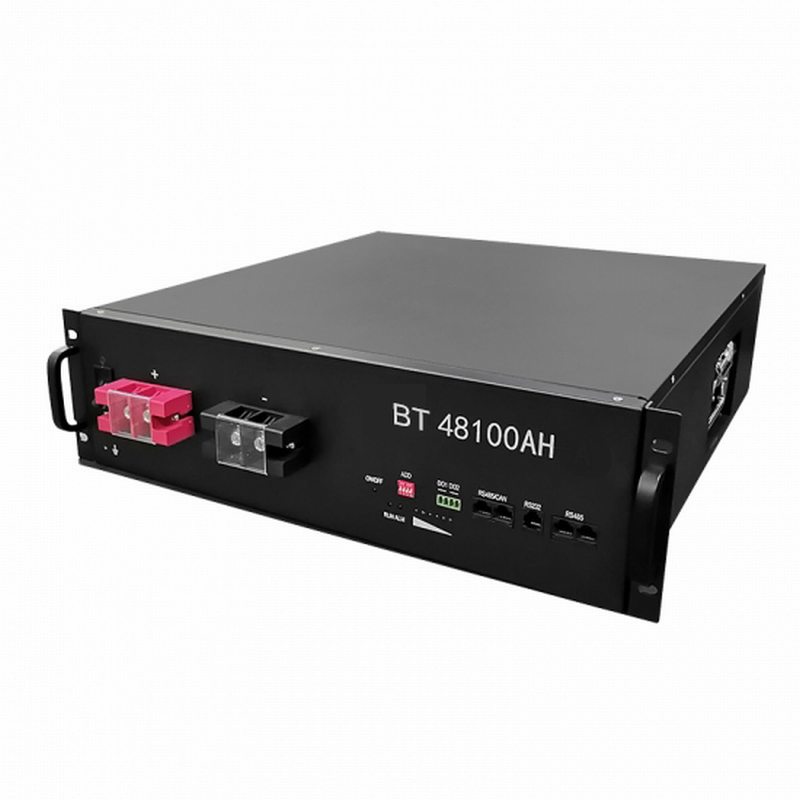

48V100Ah Lithium ion Battery (LiFePO4), deep cycle rechargeable battery, built-in BMS, suitable for energy system, UPS, solar systems and off grid application etc.
Description:
Built-in BMS: Superpack LiFePO4 battery has built-in BMS High temperature resistance can reach 60℃,The built-in high temperature cut-off function,can prevent short circuit, over charge, over discharge, over current. Operating temperature: Charge at 0℃-45℃;Discharge at -20℃-60℃.
More Widely Used: Superpack LiFePO4 batteries widely used in electric bike, sightseeing vehicles, golf carts, telecom base station, emergency lighting, UPS backup power supply, home equipment etc.
Long Service Life: Lead-acid batteries can only use 200-400 cycles, and lithium deep cycle battery can reach 4000 cycles, and in the state of full charge and full discharge can cycle more than 1500 cycles, the service life of lead-acid battery is 3 times.
Light & Practical:Lithium-ion battery weighs only 30% as much as lead-acid battery, only 45kg easy to carry and install.
Parameter:
Model | BT48V100 |
Nominal voltage | 51.2V |
Nominal capacity | 100Ah |
Energy | 5120Wh |
Approx. weight: | 45Kg |
Dimensions (LxWxH) | 470*482*130.5mm |
Internal resistance | 35mΩ |
Max. Continuous Discharge Current@25℃ | 100A |
Max. Continuous Charge Current@25℃ | 100A |
Discharge temperature range | -20~60℃ |
Storage Temperature(50%SOC) | -20℃ ~ 45℃(3 months) |
| -20℃ ~ 35℃(6 months) | |
| -20℃ ~ 25℃(12 months) | |
Charge temperature range | 0~45℃ |
Peak Discharge Power @25℃,100ms | 7.68KW |
Max Discharge Power @25℃ | 5.12KW |
Communication protocol | RS232/RS485 |
