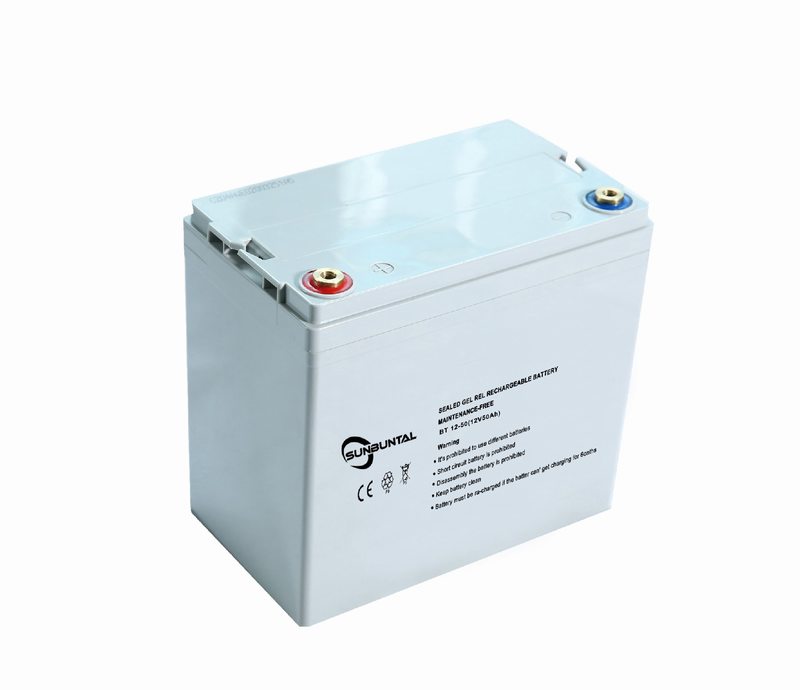

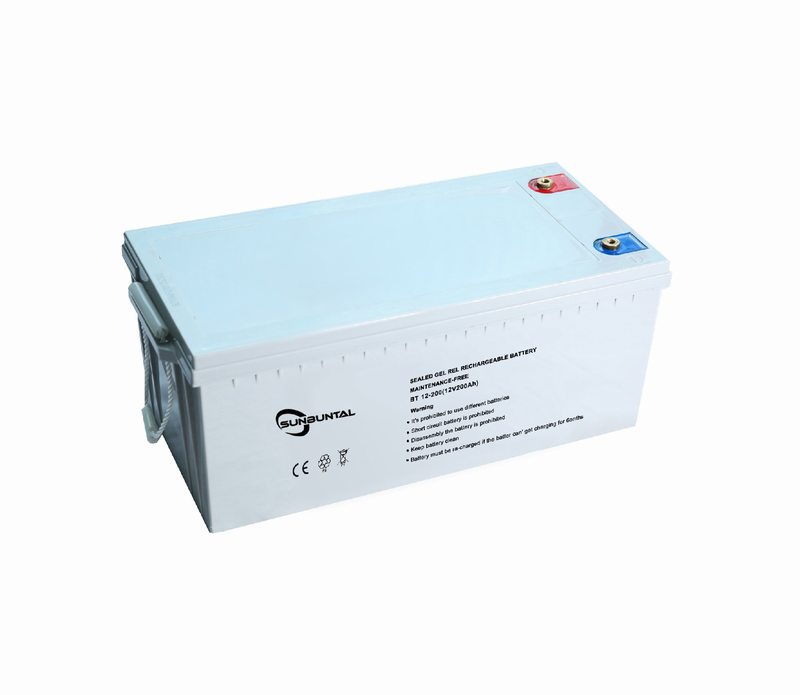

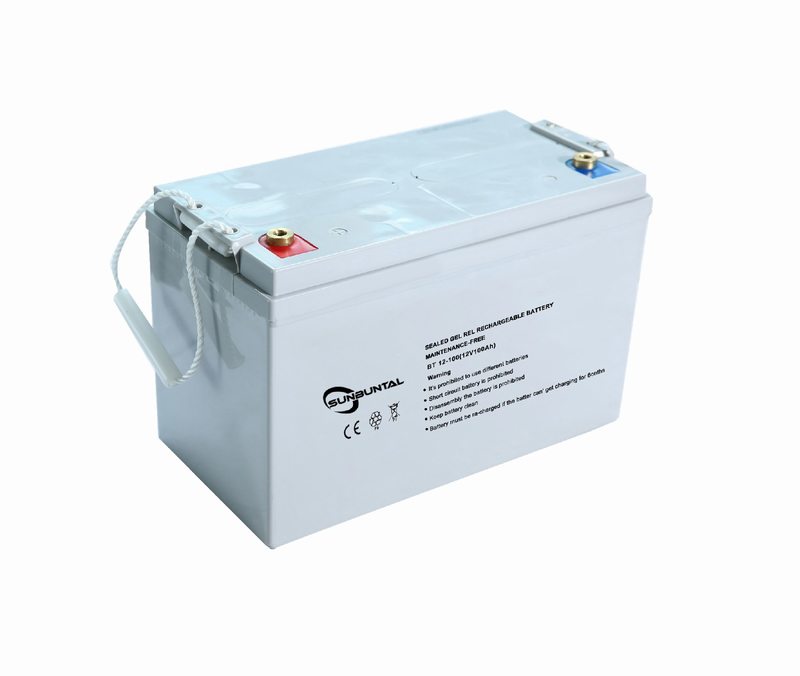

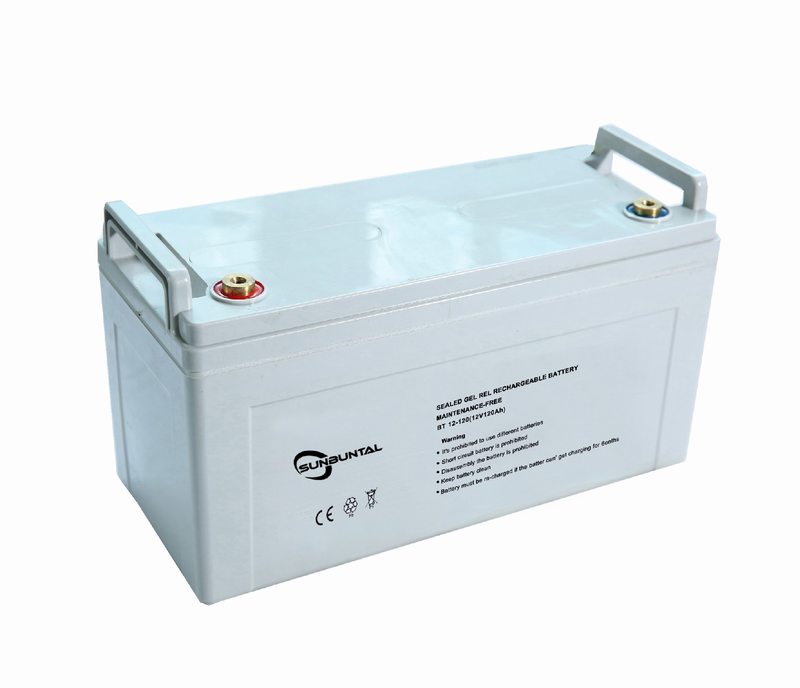

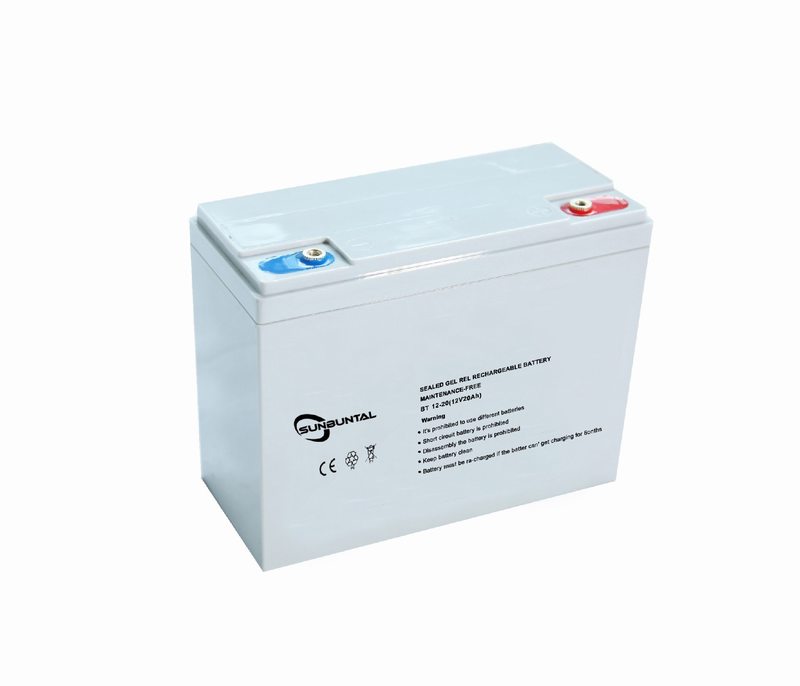

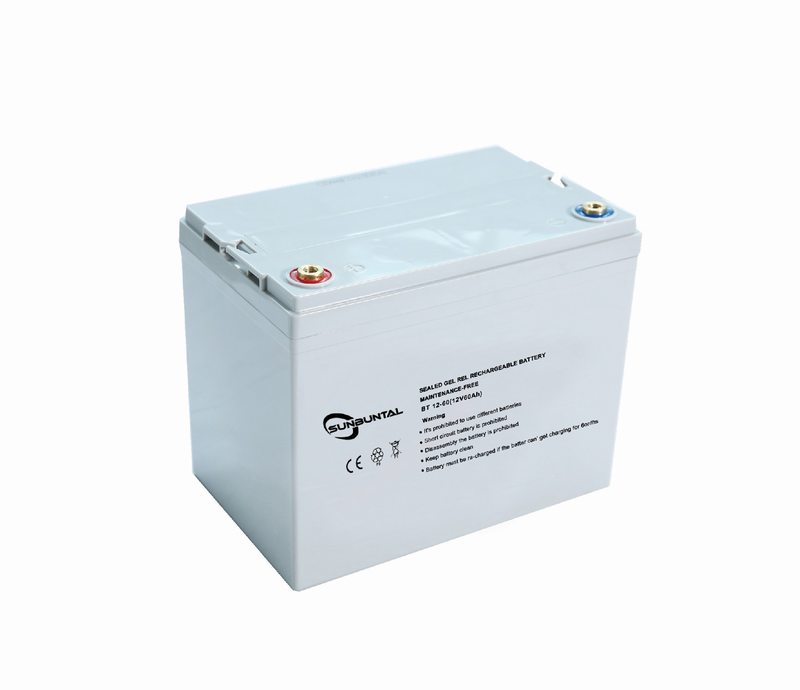

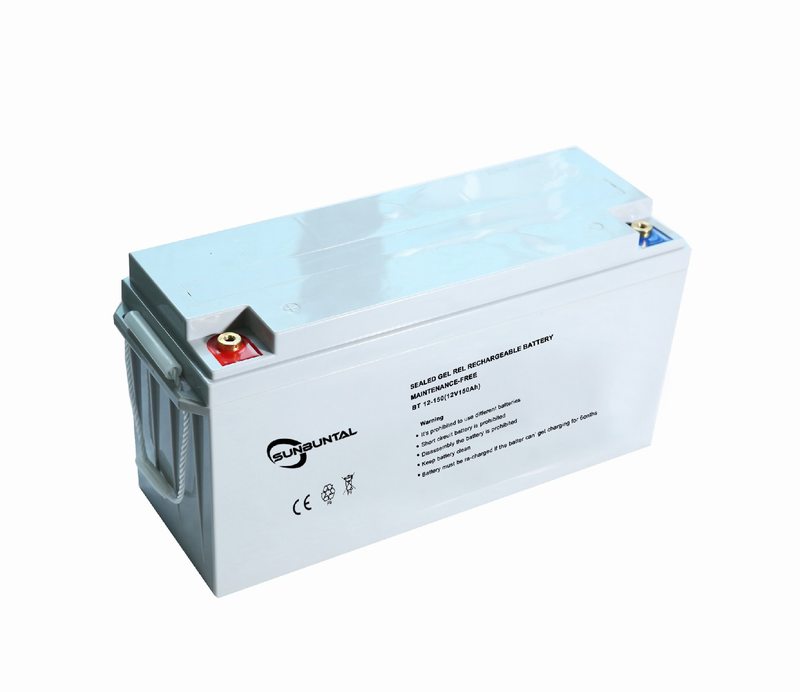

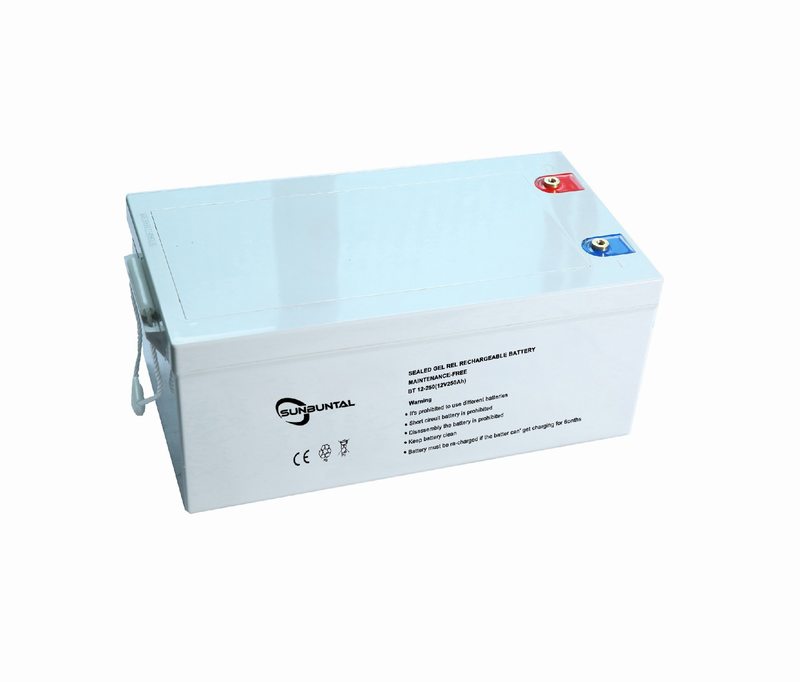

12V UPS Battery

◆Applied to computer and automated office equipment, UPS system, fire alarm and security system, telecommunications and power system, emergency backup power supply

◆Using AGM adsorption technology, no flowing electrolyte, can be operated in any direction

◆Low self-discharge, high corrosion resistance grid alloy, long life

◆No need to add water for maintenance-free operation

◆Designed floating charge with long service life

contact now

- Features & Benefits

Model	Voltage(V)	Capacity(AH)	Dimensions(mm)				Approx Weight(kg)	Terminal Position	Terminal Type
Model	Voltage(V)	Capacity(AH)	Length	Width	Height	Total H	Approx Weight(kg)	Terminal Position	Terminal Type
BT12-55	12	55	280	105	220	220	17	F1	A
BT12-75	12	75	562	114	188	188	24	F1	A
BT12-100	12	100	395	110	285	285	33.5	F1	A
BT12-105	12	105	507	110	238	238	34	F2	B
BT12-120	12	120	551	109	239	239	36	F1	A
BT12-125	12	125	437	108	317	317	36	F1	A
BT12-150	12	150	550	110	288	288	48.4	F1	A
BT12-180	12	180	560	125	316	316	55	F1	A
BT6-4	6	4	70	47	101	107	0.73	C	F2
BT6-7	6	7	151	34	94	99	1.15	G	F2
BT6-12	6	12	151	50	94	99	1.8	G	F2
BT6-150	6	150	260	180	247	252	25.7	B	F5/M6
BT6-200	6	200	328	177	224	228	30	A	F5/M6
BT12-4	12	4	89	70	101	101	1.75	A	F1
BT12-7	12	7	151	65	94	99	2.2	E	F2
BT12-8	12	8	151	65	110	116	2.4	E	F2
BT12-10	12	10	151	98	96	102	3.3	E	F2
BT12-12	12	12	151	98	96	102	3.85	E	F2
BT12-18	12	18	181	77	167	167	5.5	D	F3/M5
BT12-20	12	20	181	77	167	167	6	D	F3/M5
BT12-22	12	22	181	77	171	171	7.2	D	F3/M5
BT12-24	12	24	175	126	125	125	8	C	F4/M5
BT12-28	12	28	168	126	175	175	9.6	C	F4/M5
BT12-33	12	33	196	131	155	181/157	10.5	C	F4/M6
BT12-40	12	40	196	166	175	175	13.4	C	F4/M6
BT12-55	12	55	230	138	211	229/221	17.5	C	F5/M6
BT12-65	12	65	350	168	178	178	21.5	C	F5/ME
BT12-70	12	70	260	169	209	228/212	22	C	F5/M6
BT12-90	12	90	307	169	208	227/212	28	C	F5/M6
BT12-100	12	100	331	176	215	245/218	30	C	F6/M8
BT12-120	12	120	407	174	209	234	35	C	M10
BT12-150	12	150	483	170	241	241	43	C	M10
BT12-200	12	200	522	238	216	242/220	60.3	F	M10
BT12-230	12	230	520	269	220	249/223	663	F	F6/M8
BT12-250	12	250	520	269	220	249/223	73.5	F	F6/M8
BT2-100	2	100	171	72	205	210	7.2	G	F6 / M10
BT2-150	2	150	171	102	205	277	8.2	G	F6 / M10
BT2-200	2	200	173	111	329	365	13.5	G	F6 / M10
BT2-250	2	250	173	111	329	365	17.8	G	F6 / M10
BT2-300	2	300	171	151	330	366	19.6	G	F6 / M10
BT2-350	2	350	171	151	330	366	21.5	G	F6 / M10
BT2-400	2	400	411	176	329	366	28	H	F6 / M10
BT2-450	2	450	223	187	351	376	30	H	F6 / M10
BT2-500	2	500	241	172	331	336	32	H	F6 / M10
BT2-550	2	550	241	172	331	366	33	H	F6 / M10
BT2-600	2	600	301	175	331	366	39.2	H	F6 / M10
BT2-800	2	800	410	175	330	365	54	I	F6 / M10
BT2-1000	2	1000	475	175	328	365	63.5	I	F6 / M10
BT2-1250	2	1250	475	175	328	365	76.5	I	F6 / M10
BT2-1500	2	1500	401	351	342	378	100	J	F6 / M10
BT2-1600	2	1600	401	351	342	378	106	J	F6 / M10
BT2-2000	2	2000	491	351	344	383	127	J	F6 / M10
BT2-2500	2	2500	491	351	344	383	162	J	F6 / M10
