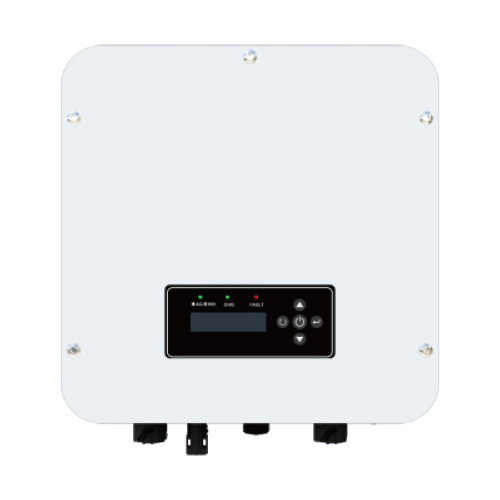

Solar water pump inverter

SUNBUNTAL supply 1500W Solar water pump inverter with exceptional power, experience, and good quality,

High Eficiency . Use dynamic VI MPPT control method

MPPT efficiency 9g %

IP65 protection level , with heat sink cooling

Strong reliability , with power module ( PIM )

DC input voltage up to 900V

Support pump soft start , with complete motor protection function

Equipped with lower water level detection and control circuit to preventoverflow and dry pumping

Full automatic operation

Full protection function and self-diagnosis

WIFI / GPRS ( optional ) , remote monitor or control system running statusana mode

contact now

Specification

Model	BTP01	BTP02	BTP03
Specification : 1 phase220v or 3 phase 220v motor
pv input
Max. PV Input Voltage	450V
Min.Starting Voltage	80V
Recommended MPPT voltage	100-400V
Max. PV Input Current	12A	12A	16A
AC Input
AC Input Voltage	1 PH 220-240V (-15%-10%)
Rated AC Input Current	16A	24A	38A
AC Input Frequency	47~63 Hz
AC Input Terminal	L,N,PE
AC Output
Rated Output Power	1500W	2200W	4000W

Rated output current	10.2A@ 1 phase 220V 7.5A@ 3 phase 220V	14A@ 1 phase 220V 10A@ 3 phase 220V	25A@ 1 phase 220V 16A@ 3 phase 220V

Output Wiring Mode	1P1Lor 3P3L
Output Voltage	0-220V single phase /0-220V three phase
Output Frequency	0-50/60Hz
General
Control Mode	V/F
Pump Motor Type	Asynchronous motor, 1 phase 220V or 3 phase 220V
Portection	Output overcurret; Output overload; Output short-circuit; Dry /Overflow
Enclosure Protection degree	IP65
Monitoring Option	GPRS/WiFi(Optional)
Others
Dimensions(WDH)	335335140mm	335335140mm	420360169mm
Net Weight	9.75kg	9.75kg	12kg
Operation Temperature Range	-1111111111111 25-60℃
Altitude	<3000m (with derating above 2000m)
Relative humidity	0-100%
