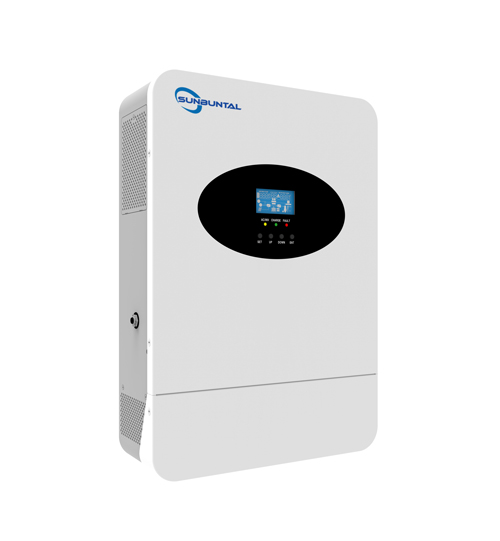

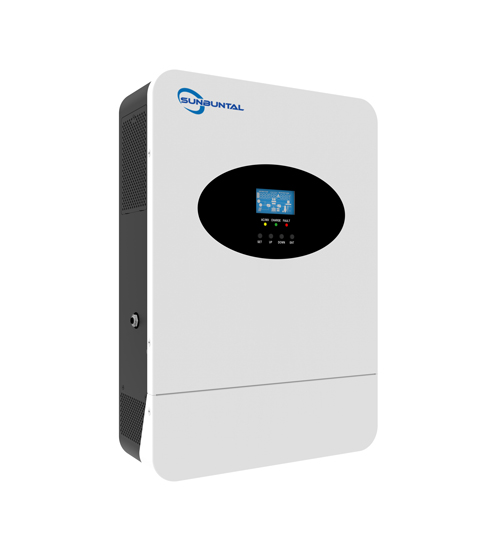

Sunbuntal company has experience in this industry and supply the high quality 3.5kw,5kw Off Grid Inverter for solar home system supply.
| OFF-Grid Hybrid Inverter | ||
| Datasheet | BT 3.5K_US | BT 5K_EU |
| Battery Input/Output Data | ||
| Battery Voltage | 48VDC | |
| Hybrid Charging Maximum Charging Cu | 60A | 100A |
| Battery Type | Lithium/Lead-acid | |
| Solar Input Data | ||
| Maximum PV Array Power | 4500W | 6000W |
| MPPT Range @ Operating Voltage | 120VDC -450VDC | |
Maximum PV Input Current | 15A | 22A |
| Number of Independent MPP Trackers/ Strings Per MPP Tracker | 1/1 | |
| Maximum PV Array Open Circuit Voltage | 500VDC | |
| Maximum Solar Charge Current | 60A | 100A |
| AC Output Data | ||
| Rated Power | 3500VA/ 3500W | 5000VA/ 5000W |
| Parallel Capability | NO | Yes, 6 units maximum |
| AC Voltage Regulation (Battery Mode) | 120VAC± 5% @ 50/60Hz | 230VAC ± 5% @ 50/60Hz |
| Surge Power | 7000VA | 10000VA |
| Efficiency (Peak) | 92% | |
| Waveform | Pure sine wave | |
| Transfer Time | 10ms typical, 20ms Max | |
| AC Charger Data | ||
| Charge Current | 40A | 60A |
| AC Input Voltage | 120 VAC | 230 VAC |
| Selectable Voltage Range | 90-140VAC (For Personal Computers) ;90-140 VAC VAC (For Home Appliances) | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) |
| Frequency Range | 50Hz/60Hz (Auto sensing) | |
| PHYSICAL Data | ||
| Protection Degree | IP20 | |
| Dimension (W/H/D) | 335*128*480 | 335*128*480 |
| Net Weight | 12Kg | |
| OPERATING ENVIRONMENT Data | ||
| Certificate | CE(IEC62109-1)/CETL(UL 1741 C22.2 NO.107.1)1-6PCS | |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
| EMC Certification Level | EN61000, C2 | |
| Altitude | <2000m | |
| Operating Temperature | 0°C - 55°C | |
| Storage Temperature | -15°C - 60°C | |
